Overview

The 1.5 µm point light source is a compact, high-performance infrared laser designed for applications that require eye-safe wavelengths and stable single-mode output. With miniaturized packaging, high peak power capability and excellent environmental stability, it delivers reliable and precise optical performance in both laboratory and field environments. Thanks to its high beam quality and polarization-maintaining single-mode output, this source is well suited for advanced LiDAR platforms, cutting-edge quantum technology experiments and precision medical systems that depend on repeatable, low-noise infrared illumination.

Key Features

• High beam quality with near-diffraction-limited output.
• Stable output power suitable for long-duration operation.
• Polarization-maintaining single-mode operation for sensitive measurements.
• Miniaturized, compact package ideal for OEM and benchtop integration.
• Excellent environmental stability for mobile and industrial environments.
• High peak power capability for demanding LiDAR and sensing tasks.

Application Areas

• LiDAR systems – including automotive, industrial and atmospheric LiDAR where eye safety and range are critical.
• Quantum technology research – stable 1.5 µm source for quantum communication, sensing and information experiments.
• Precision medicine and biomedical applications – supports diagnostic, imaging and therapeutic systems in the 1.5 µm band.

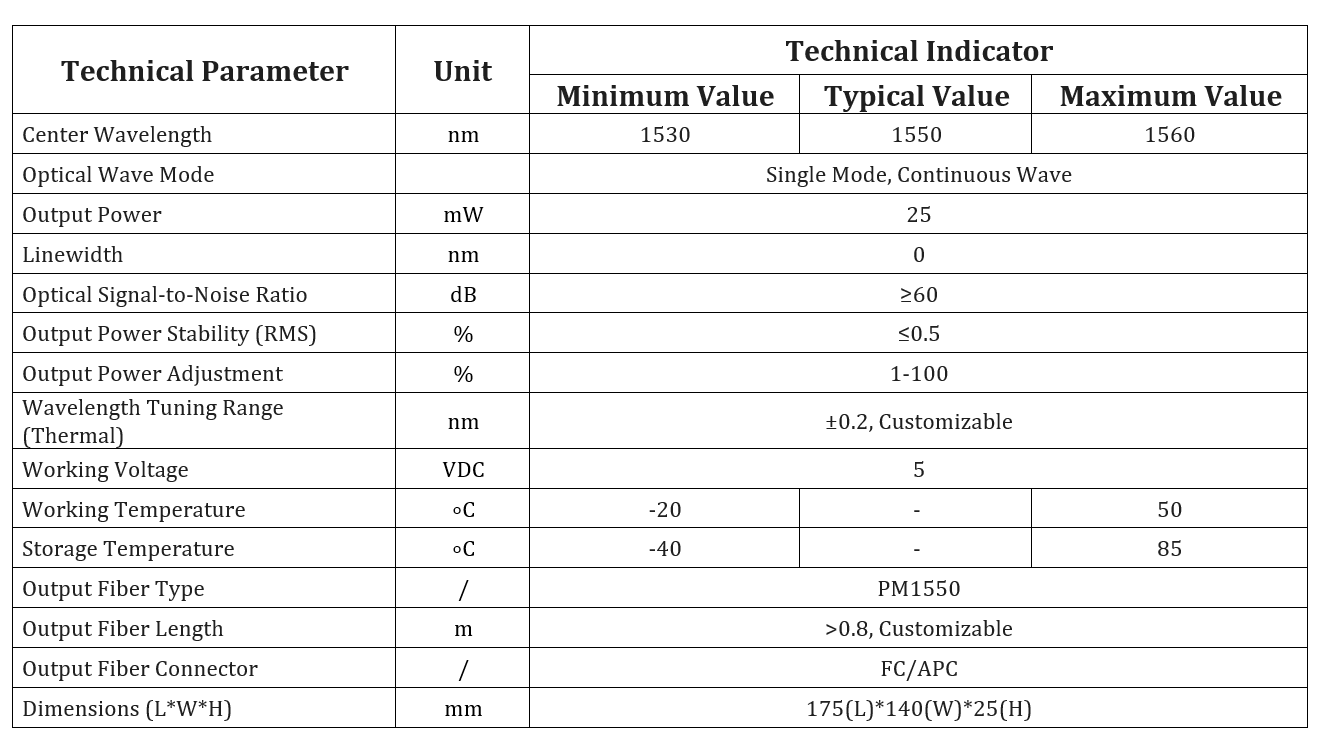

Technical Specifications (Typical)

The 1.5 µm Point Light Source is engineered for precise fiber-optic and photonic setups: • Optical: Centered around 1.5 µm with configurable output power in the mW range and point / fiber-coupled / collimated beam formats. • Fiber & Connectors: SMF or PM fiber options with FC/APC, FC/PC or bare fiber (on request) and typical coupling efficiency above 70%. • Environmental & Electronics: Regulated low-noise current drive, integrated TEC temperature control and operation from 0°C to 40°C for stable performance in lab and OEM environments.

Configuration & Integration Options

The 1.5 µm point source is available with FC/APC, FC/PC, bare fiber or collimated free-space outputs. It supports continuous emission with adjustable power settings and is designed for quick integration into optical benches, OEM modules and compact test systems that require eye-safe, stable infrared illumination.

Selection Guidelines

When selecting a 1.5 µm point light source, consider wavelength accuracy, required output power, connector format and whether polarization-maintaining fiber is required. For interferometry, LiDAR or sensing applications, pay close attention to noise performance, thermal stability and long-term wavelength drift.

Handling & Maintenance

Maintain clean connectors, avoid tight fiber bends and use recommended low-noise drivers for powering the source. Allow the TEC to stabilize after power-up for consistent performance and follow standard laser safety procedures when working with 1.5 µm infrared light in laboratory or production environments.
